Cloud-clone
SKU:SEA309Mu

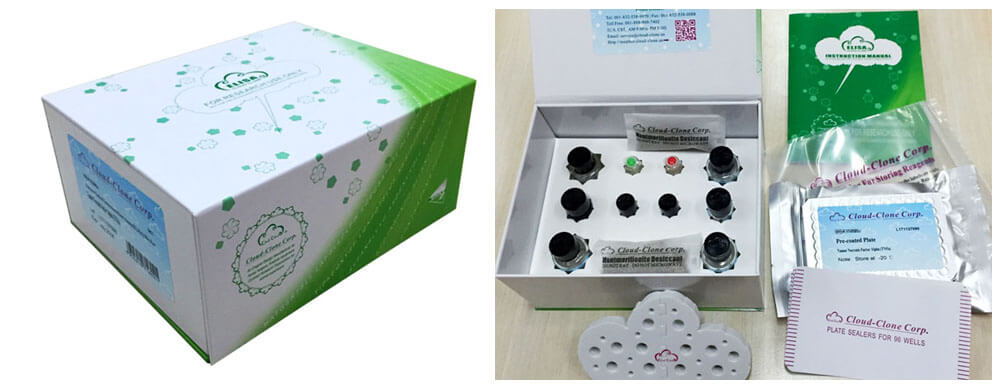

ELISA Kit for Galectin 9 (GAL9)
ELISA Kit for Galectin 9 (GAL9)
Couldn't load pickup availability
Enzyme-linked immunosorbent assay for Antigen Detection.
Product No.
SEA309Mu
Organism Species
Mus musculus (Mouse).
Sample Type
serum, plasma, tissue homogenates, cell lysates, cell culture supernates and other biological fluids
Test Method
Double-antibody Sandwich
Assay Length
3h
Detection Range
78-5,000pg/mL
Sensitivity
The minimum detectable dose of this kit is typically less than 30pg/mL.
UOM
48T 96T 96T*5 96T*10 96T*100
Specificity
This assay has high sensitivity and excellent specificity for detection of Galectin 9 (GAL9).
No significant cross-reactivity or interference between Galectin 9 (GAL9) and analogues was observed.
Recovery
Matrices listed below were spiked with certain level of recombinant Galectin 9 (GAL9) and the recovery rates were calculated by comparing the measured value to the expected amount of Galectin 9 (GAL9) in samples.
| Matrix | Recovery range (%) | Average(%) |
| serum(n=5) | 79-90 | 84 |
| EDTA plasma(n=5) | 89-97 | 93 |
| heparin plasma(n=5) | 82-92 | 85 |
Precision
Intra-assay Precision (Precision within an assay): 3 samples with low, middle and high level Galectin 9 (GAL9) were tested 20 times on one plate, respectively.
Inter-assay Precision (Precision between assays): 3 samples with low, middle and high level Galectin 9 (GAL9) were tested on 3 different plates, 8 replicates in each plate.
CV(%) = SD/meanX100
Intra-Assay: CV<10%
Inter-Assay: CV<12%
Linearity
The linearity of the kit was assayed by testing samples spiked with appropriate concentration of Galectin 9 (GAL9) and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected.
| Sample | 1:2 | 1:4 | 1:8 | 1:16 |
| serum(n=5) | 98-105% | 90-104% | 96-105% | 82-99% |
| EDTA plasma(n=5) | 93-102% | 79-103% | 93-101% | 96-105% |
| heparin plasma(n=5) | 98-105% | 88-102% | 79-104% | 80-94% |
Stability
The stability of kit is determined by the loss rate of activity. The loss rate of this kit is less than 5% within the expiration date under appropriate storage condition.
To minimize extra influence on the performance, operation procedures and lab conditions, especially room temperature, air humidity, incubator temperature should be strictly controlled. It is also strongly suggested that the whole assay is performed by the same operator from the beginning to the end.
Reagents and materials provided
| Reagents | Quantity | Reagents | Quantity |
| Pre-coated, ready to use 96-well strip plate | 1 | Plate sealer for 96 wells | 4 |
| Standard | 2 | Standard Diluent | 1×20mL |
| Detection Reagent A | 1×120µL | Assay Diluent A | 1×12mL |
| Detection Reagent B | 1×120µL | Assay Diluent B | 1×12mL |
| TMB Substrate | 1×9mL | Stop Solution | 1×6mL |
| Wash Buffer (30 × concentrate) | 1×20mL | Instruction manual | 1 |
Assay procedure summary
1. Prepare all reagents, samples and standards;
2. Add 100µL standard or sample to each well. Incubate 1 hours at 37°C;
3. Aspirate and add 100µL prepared Detection Reagent A. Incubate 1 hour at 37°C;
4. Aspirate and wash 3 times;
5. Add 100µL prepared Detection Reagent B. Incubate 30 minutes at 37°C;
6. Aspirate and wash 5 times;
7. Add 90µL Substrate Solution. Incubate 10-20 minutes at 37°C;
8. Add 50µL Stop Solution. Read at 450nm immediately.
| Magazine | Citations |
| American Journal of Nephrology | Temporal Increases in Urinary Carboxymethyllysine Correlate with Albuminuria Development in Diabetes Karger: 328581 |
| Clinical Immunology | Galectin-9 administration ameliorates CVB3 induced myocarditis by promoting the proliferation of regulatory T cells and alternatively activated Th2 cells ScienceDirect: S1521661611001057 |
| Renal Failure | Rat Renal Interstitial Fibroblasts Affect the Th1/Th2 Profile In Vitro Pubmed: 22013937 |
| BMC Nephrol | Serum galectin-9 levels are elevated in the patients with type 2 diabetes and chronic kidney disease PubMed: 23339460 |
| Retrovirology | Dysregulated Tim-3 expression on natural killer cells is associated with increased Galectin-9 levels in HIV-1 infection PubMed: PMC3750478 |
| PLoS One. | Upregulation of the Tim-3/Galectin-9 Pathway of T Cell Exhaustion in Chronic Hepatitis B Virus Infection PubMed: PMC3480425 |
| PLoS Pathogens | Galectin-9 and IL-21 Mediate Cross-regulation between Th17 and Treg Cells during Acute Hepatitis C PubMed: PMC3688567 |
| PLOS ONE | Graves’ Disease Is Associated with a Defective Expression of the Immune Regulatory Molecule Galectin-9 in Antigen-Presenting Dendritic Cells PubMed: 25880730 |
| Advances in Experimental Medicine and Biology | Molecules of Damage-Associated Patterns in Bronchoalveolar Lavage Fluid and Serum in Chronic Obstructive Pulmonary Disease Pubmed:29429028 |
| Journal of Microbiology, Immunology and Infection | Galectin-9-like from Angiostrongylus cantonensis young adult worms modulates eosinophil chemotaxis in vitro Doi: 10.1016/j.jmii.2018.09.010 |
| Oncology Letters | The effects of Tim‑3 activation on T‑cells in gastric cancer progression |
| Scientific Reports | Circulating levels of PD-L1 and Galectin-9 are associated with patient survival in surgically treated Hepatocellular Carcinoma independent of their intra … Pubmed: 31337865 |
| Biomolecules | Blood Levels of Galectin-9, an Immuno-Regulating Molecule, Reflects the Severity for the Acute and Chronic Infectious Diseases. Biomolecules 2021, 11, 430 33804076 |
| Medicine | Regulatory T cells, damage-associated molecular patterns, and myeloid-derived suppressor cells in bronchoalveolar lavage fluid interlinked with chronic obstructive … Pubmed:35687771 |
| Catalog No. | Related products for research use of Mus musculus (Mouse) Organism species | Applications (RESEARCH USE ONLY!) |
| APA309Mu02 | Active Galectin 9 (GAL9) | Cell culture; Activity Assays. |
| RPA309Mu01 | Recombinant Galectin 9 (GAL9) | Positive Control; Immunogen; SDS-PAGE; WB. |
| APA309Mu01 | Active Galectin 9 (GAL9) | Cell culture; Activity Assays. |
| RPA309Mu02 | Recombinant Galectin 9 (GAL9) | Positive Control; Immunogen; SDS-PAGE; WB. |
| PAA309Mu02 | Polyclonal Antibody to Galectin 9 (GAL9) | WB; IHC; ICC; IP. |
| PAA309Mu01 | Polyclonal Antibody to Galectin 9 (GAL9) | WB; IHC; ICC; IP. |
| LAA309Mu71 | Biotin-Linked Polyclonal Antibody to Galectin 9 (GAL9) | WB; IHC; ICC. |
| SEA309Mu | ELISA Kit for Galectin 9 (GAL9) | Enzyme-linked immunosorbent assay for Antigen Detection. |
| SCA309Mu | CLIA Kit for Galectin 9 (GAL9) | Chemiluminescent immunoassay for Antigen Detection. |
| LMA309Mu | Magnetic Luminex Assay Kit for Galectin 9 (GAL9) ,etc. | Magnetic Luminex Assay for Antigen Detection. |
